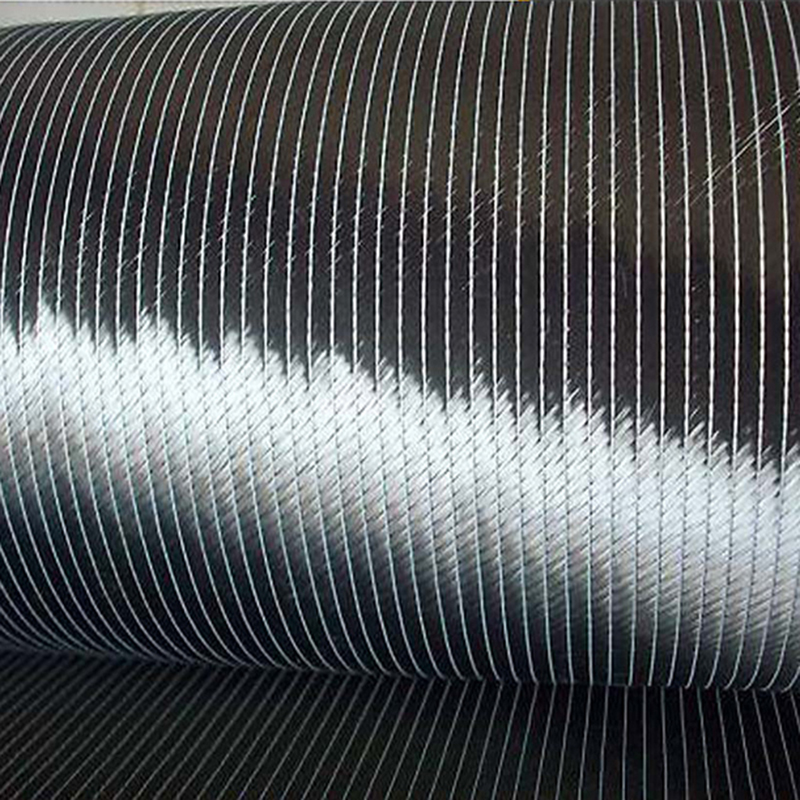

| Name: | Bi-axial- Multi-axial Carbon fiber Fabric |
| Inquiry |
Product Description
Description:
Biaxial or Multi-axial carbon fiber fabric is a type of composite material that is made from interlaced layers of carbon fibers that are woven in multiple directions. This type of fabric is known for its high strength-to-weight ratio,durability, and resistance to corrosion and fatigue.
The fabric is constructed by combining carbon fiber layers or unidirectional tapes. Each oriented in a specific direction,and stitching or bonding them together. The fiber orientations can vary, with common configurations including 0°，90°,±45°,and even more complex combinations. This arrangement provides tailored reinforcement properties in different directions, enabling engineers to optimize the material for specific load requirements.
Specification:
Item name | Fiber orientation | Each layer weight (g/m2) | Stitched fiber weight (g/m2) | Total fiber weight (g/m2) | Fabric width(cm) |
NTX150 | +45/-45 | 75 | 7 | 157 | 127 |
NTXT230 | +45/90/-45 | 75 | 7 | 232 | 127 |
NTX200 | +45/-45 | 100 | 7 | 207 | 127 |
NTXT300 | +45/90/-45 | 100 | 7 | 307 | 127 |
NTX250 | +45/-45 | 125 | 7 | 257 | 127 |
NTXT380 | +45/90/-45 | 125 | 7 | 382 | 127 |
NTX300 | +45/-45 | 150 | 7 | 307 | 127 |
NTX450 | +45/90/-45 | 150 | 7 | 457 | 127 |
NTX400 | +45/-45 | 200 | 7 | 407 | 127 |
NTXT600 | +45/90/-45 | 200 | 7 | 607 | 127 |
NTLXT800 | +45/90/-45 | 200 | 7 | 807 | 127 |
NTX600 | +45/90/-45 | 300 | 7 | 607 | 127 |
NTXT900 | +45/90/-45 | 300 | 7 | 907 | 127 |
NTXLT1200 | 0/+45/90/-45 | 300 | 7 | 1207 | 127 |
